he "Max Thickness" Trap: Why Your 20mm Plate Roller is Failing Your 16mm Jobs

Views : 7
Update time : 2026-03-16 15:27:23
<p><br></p>

<div style="font-family: 'Segoe UI', Arial, sans-serif; line-height: 1.8; color: #333; max-width: 850px; margin: 30px auto; background: #ffffff; border-radius: 10px; box-shadow: 0 10px 30px rgba(0,0,0,0.1); border-top: 10px solid #8e1a1a; overflow: hidden;">

<div style="padding: 45px;">
<h1 style="color: #8e1a1a; font-size: 28px; line-height: 1.2; margin-top: 0;">
The "Max Thickness" Trap: <br>
<span style="color: #333; font-size: 20px;">Why Your Machine is Failing Your "Easy" Jobs</span>
</h1>

<p style="font-size: 16px; margin-top: 25px; color: #555;">
You bought a machine rated for <strong>20mm</strong>. You try to pre-bend a <strong>16mm</strong> plate, and the machine groans, the safety valves pop, or worse—the cylinders stall. <em>What happened?</em>
</p>

<div style="background-color: #fef2f2; border-left: 6px solid #8e1a1a; padding: 25px; margin: 35px 0;">
<h3 style="margin-top: 0; color: #8e1a1a;">The Secret Manufacturers Don't Tell You</h3>
<p style="font-size: 15px; margin-bottom: 0;">
There is a massive difference between <strong>"Rolling Capacity"</strong> and <strong>"Pre-bending Capacity."</strong> Most machines can roll a thin plate into a cylinder, but only a high-torque machine can pre-bend the edges. If your machine is underpowered, you end up with massive "flat ends" that ruin your circularity.
</p>
</div>

<h2 style="color: #2c3e50; font-size: 22px; margin-top: 40px;">3 Factors That Change Everything</h2>

<div style="display: grid; grid-template-columns: 1fr 1fr; gap: 20px; margin-top: 20px;">
<div style="border: 1px solid #eee; padding: 20px; border-radius: 8px;">
<h4 style="color: #8e1a1a; margin-top: 0;">1. Yield Strength</h4>
<p style="font-size: 14px; margin-bottom: 0;">Most machines are rated for 245 MPa steel. If you are rolling Q355 or Stainless (higher yield), your 20mm machine suddenly becomes a 12mm machine. Don't let the sales rep ignore this!</p>
</div>
<div style="border: 1px solid #eee; padding: 20px; border-radius: 8px;">
<h4 style="color: #8e1a1a; margin-top: 0;">2. Rolling Diameter</h4>
<p style="font-size: 14px; margin-bottom: 0;">The smaller the cylinder, the more force required. Trying to hit a 1.1x top roll diameter requires nearly double the pressure of a standard roll.</p>
</div>
</div>

<h2 style="color: #2c3e50; font-size: 22px; margin-top: 40px;">Real World Capacity (Example)</h2>
<table style="width: 100%; border-collapse: collapse; margin-top: 15px; background: #fff;">
<tr style="background-color: #2c3e50; color: #fff; text-align: left;">
<th style="padding: 15px;">Material Type</th>
<th style="padding: 15px;">Nominal Capacity</th>
<th style="padding: 15px;">Real Pre-bending Limit</th>
</tr>
<tr style="border-bottom: 1px solid #eee;">
<td style="padding: 15px; font-weight: bold;">Mild Steel (Q235)</td>
<td style="padding: 15px;">20 mm</td>
<td style="padding: 15px; color: #27ae60; font-weight: bold;">16 - 18 mm</td>
</tr>
<tr style="border-bottom: 1px solid #eee;">
<td style="padding: 15px; font-weight: bold;">High Tensile (Q355)</td>
<td style="padding: 15px;">20 mm</td>
<td style="padding: 15px; color: #e67e22; font-weight: bold;">12 - 14 mm</td>
</tr>
<tr>
<td style="padding: 15px; font-weight: bold;">Stainless Steel</td>
<td style="padding: 15px;">20 mm</td>
<td style="padding: 15px; color: #c0392b; font-weight: bold;">10 - 12 mm</td>
</tr>
</table>

<div style="margin-top: 45px; padding: 30px; background: #f4f4f4; border-radius: 8px; text-align: center;">
<h3 style="margin-top: 0;">Don't Guess. Let Us Calculate.</h3>
<p style="font-size: 15px; color: #666; margin-bottom: 0;">
Before you sign that contract, send us your material grade and minimum diameter. At <strong>SLM Machines</strong>, we provide a <u>Full Capacity Simulation</u> so you never buy a machine that's too small for your future growth.
</p>
</div>
</div>
</div>

相关新闻

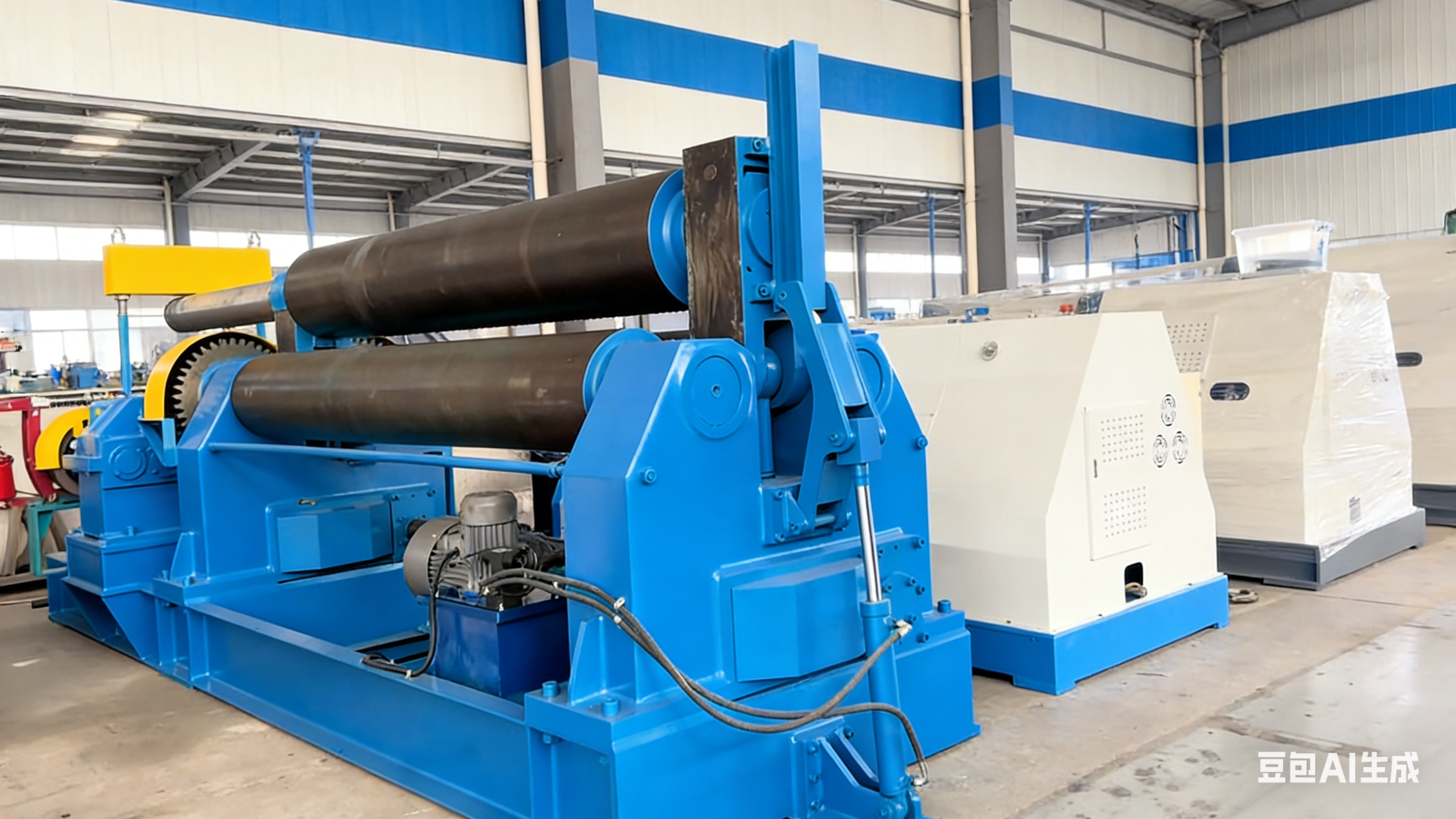

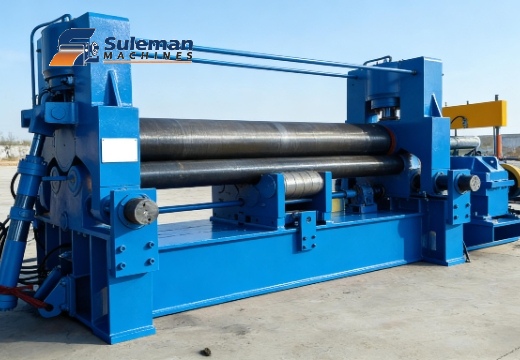

Why Wind Power Projects Demand "Universal" 3-Roll Plate Rollers Why Wind Power Projects Demand "Universal" 3-Roll Plate Rollers
Mar 18,2026
Avoid costly rolling mistakes. Learn why the Universal 3-roll is a game-changer for 30mm Q355 steel and get critical advice on foundation pits and crane height requirements.

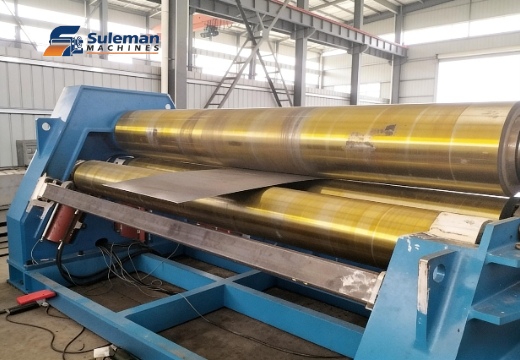

he "Max Thickness" Trap: Why Your 20mm Plate Roller is Failing Your 16mm Jobs he "Max Thickness" Trap: Why Your 20mm Plate Roller is Failing Your 16mm Jobs
