Performance Features

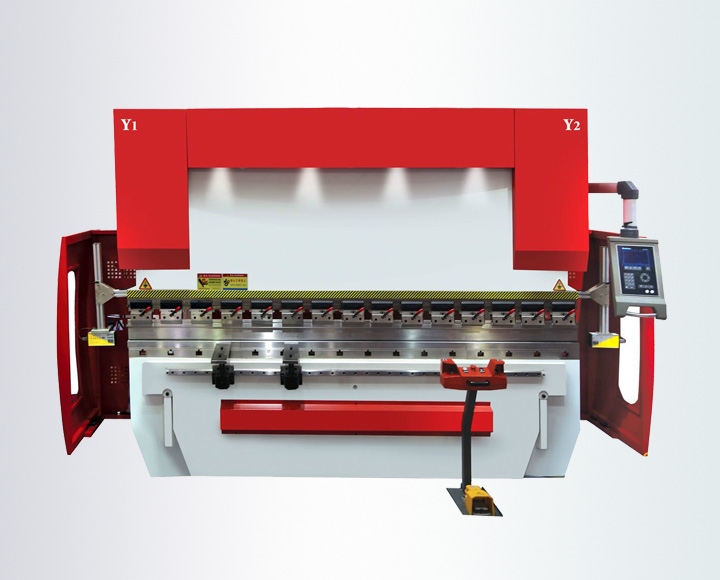

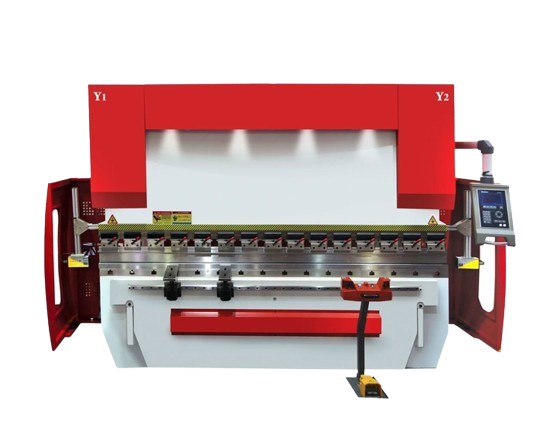

Streamlined Design & High Performance: Features a streamlined design, representing a high-configuration, high-precision, and high-efficiency fully CNC bending machine.

Electro-hydraulic Servo System: Utilizes an electro-hydraulic servo system with full closed-loop control for precise ram synchronization.

Standard 3+1 Axes: Standard configuration includes Y1 (left cylinder), Y2 (right cylinder), X (back gauge front/back), and V (hydraulic deflection compensation).

DELEM CNC System: Equipped with the DELEM DA52 CNC system as standard. DA56, DA65, or DA66 systems are available as options.

Dual Deflection Compensation: Incorporates upper and lower deflection compensation mechanisms. Features a rapid clamping device for the upper tooling that also provides compensation, or an optional hydraulic version automatically controlled by the CNC system.

Linear Guide Back Gauge: Standard linear guide movable back gauge fingers for accurate positioning.
